H49IP001EN-E_BrochureShort_GWM5

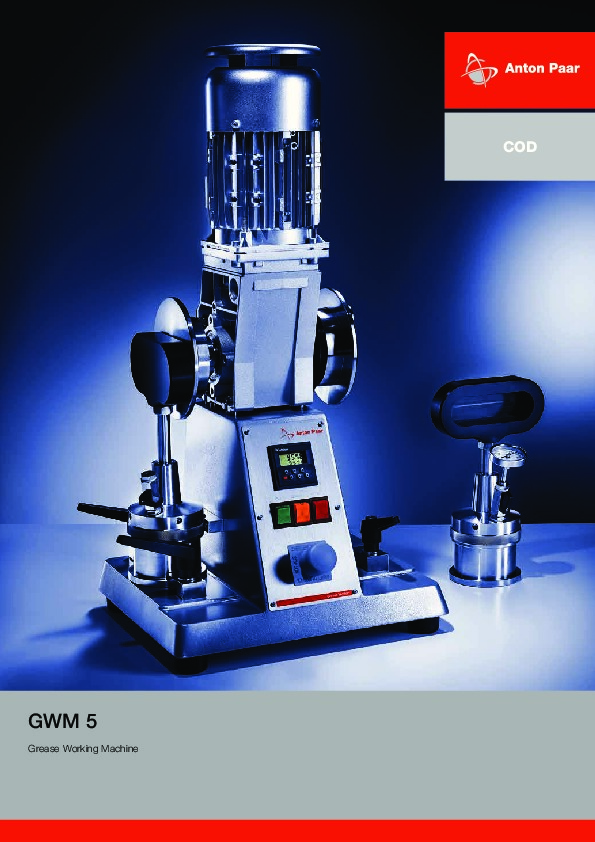

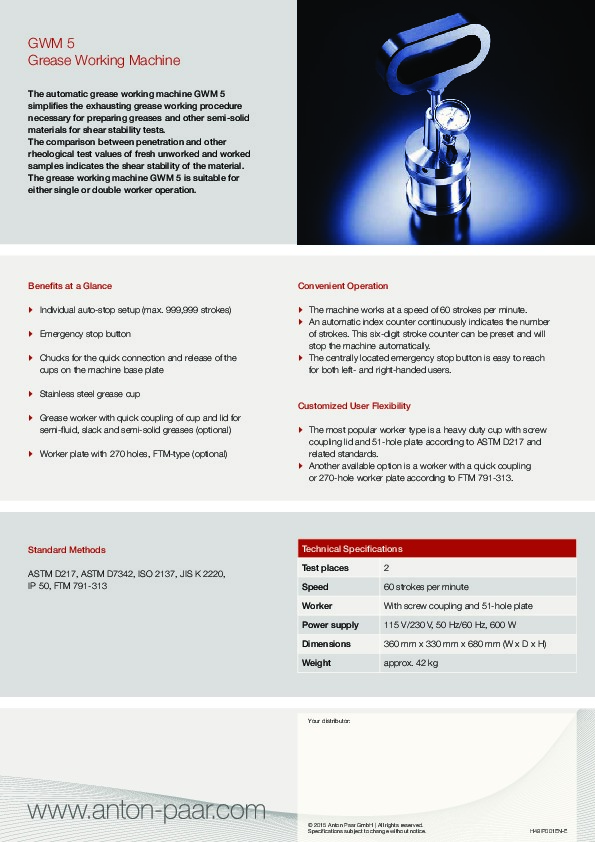

CO GW G GWM 5 Grease Working Machine The automatic grease working machine GWM 5 simplifies the exhausting grease working procedure necessary for preparing greases and other semi-solid materials for shear stability tests. The comparison between penetration and other rheological test values of fresh unworked and worked samples indicates the shear stability of the material. The grease working machine GWM 5 is suitable for either single or double worker operation. Benefits at a Glance% A? "b4v Individual auto-stop setup (max. 999,999 strokes) % A? "b4v Emergency stop button % A? "b4v Chucks for the quick connection and release of the cups on the machine base plate % A? "b4v Stainless steel grease cup % A? "b4v Grease worker with quick coupling of cup and lid for semi-fluid, slack and semi-solid greases (optional) % A? "b4v Worker plate with 270 holes, FTM-type (optional) Convenient Operation % A? "b4v The machine works at a speed of 60 strokes per minute. % A? "b4v An automatic index counter continuously indicates the number of strokes. This six-digit stroke counter can be preset and will stop the machine automatically. % A? "b4v The centrally located emergency stop button is easy to reach for both left- and right-handed users. Customized User Flexibility % A? "b4v The most popular worker type is a heavy duty cup with screw coupling lid and 51-hole plate according to ASTM D217 and related standards. % A? "b4v Another available option is a worker with a quick coupling or 270-hole worker plate according to FTM 791-313. Standard Methods ASTM D217, ASTM D7342, ISO 2137, JIS K 2220, IP 50, FTM 791-313 Technical Specifications Test places 2 Speed 60 strokes per minute Worker With screw coupling and 51-hole plate Power supply 115 V/230 V, 50 Hz/60 Hz, 600 W Dimensions 360 mm x 330 mm x 680 mm (W x D x H) Weight approx. 42 kg © 2015 Anton Paar GmbH | All rights reser ved. Specifications subject to change without notice.H49IP001EN-E Your distributor:
